Sale!

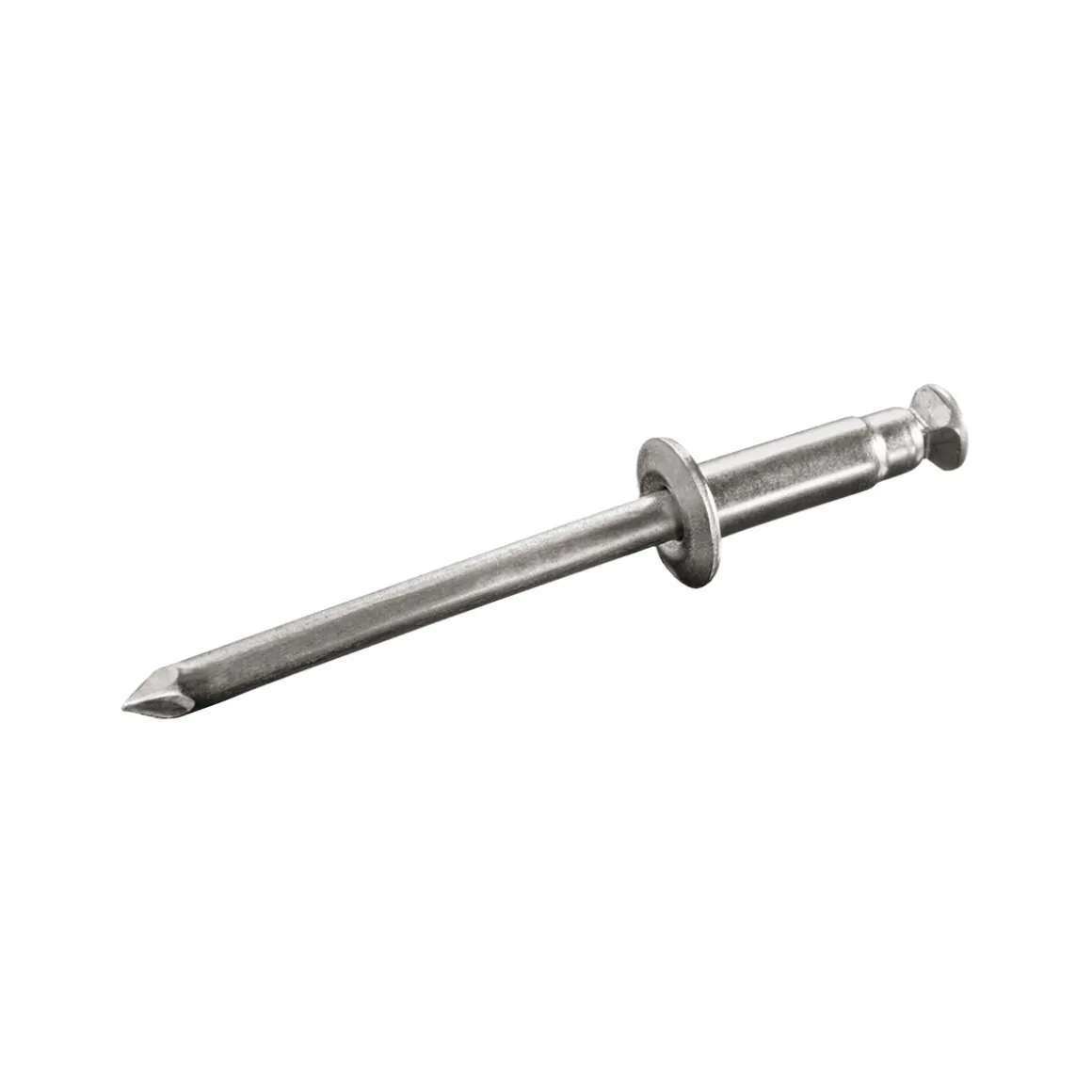

Spreizblindnieten Edelstahl A2/Edelstahl A2 (Ø x L) 4,0 x 13,0 mm Flachkopf – Spreiznieten – Nieten – STAR
Original price was: €690.58.€121.17Current price is: €121.17.
| Artikel | Spreizblindniete STAR A2/A2 – Flachkopf – 4,0x13 mm |
| Artikelnummer | 7089401300 |
| Produkttyp | Spreizblindniete |
| Markenname | STAR |
| Hersteller | Goebel GmbH |
| Werkstoff Dorn | Edelstahl A2 [ 1.4301 ] |
| Werkstoff Hülse | Edelstahl A2 [ 1.4301 ] |
| Kopfform | Flachkopf |

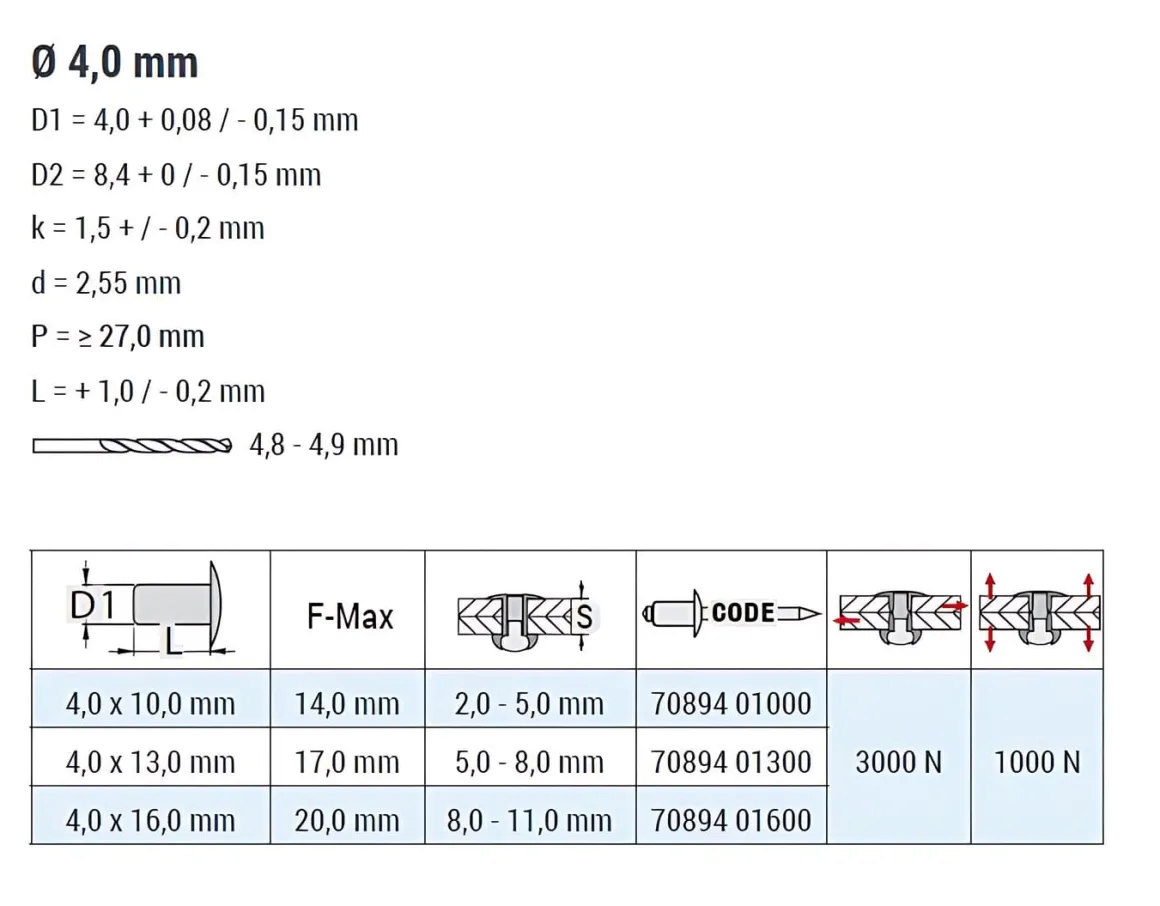

| Durchmesser (mm) | 4,0 |

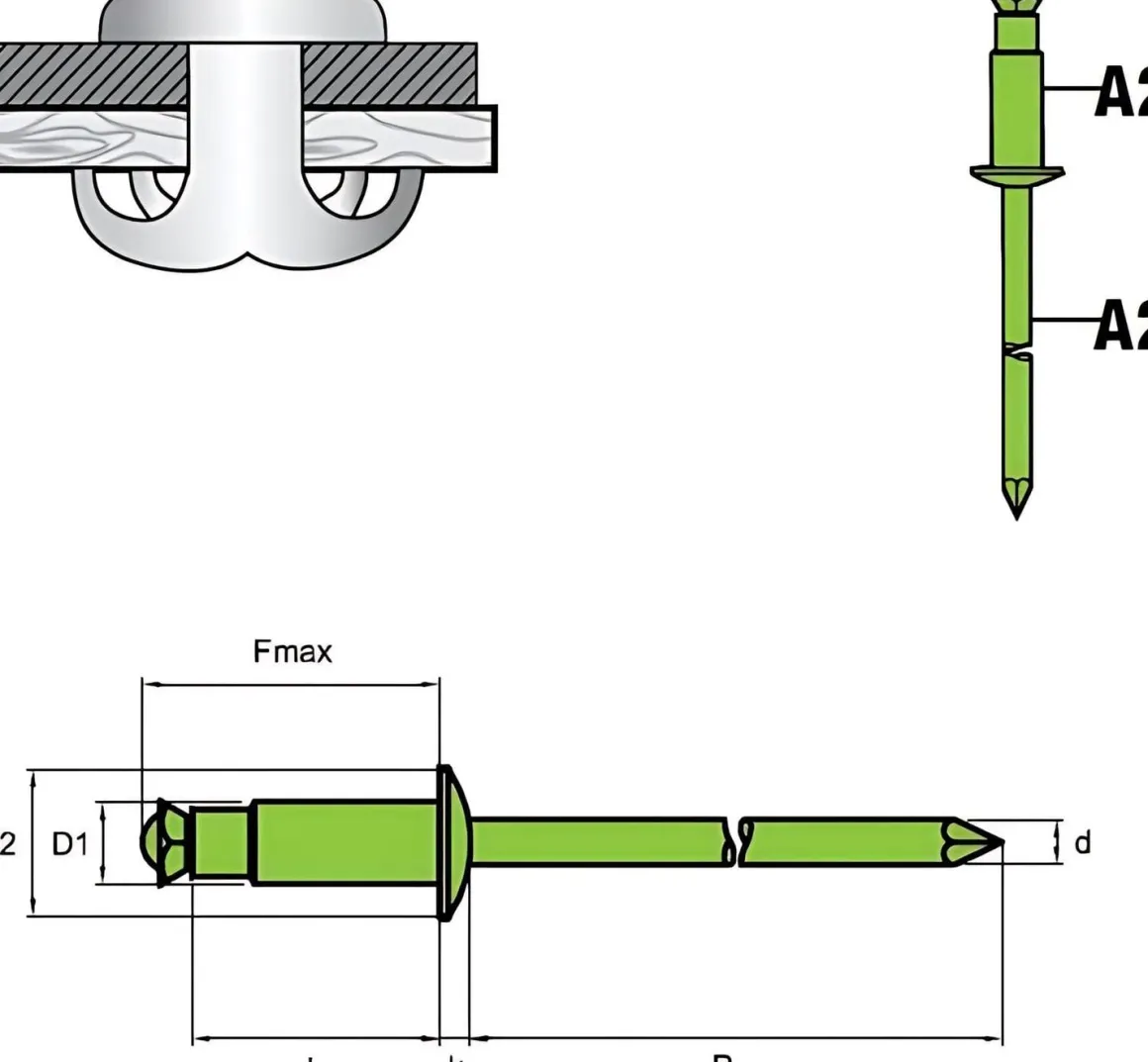

| Durchmesser Kopf (D2) | 8,4 + 0 / – 0,15 mm |
| Nietdorn Durchmesser (d) | 2.55 mm |
| D1 Toleranz | 4,0 + 0,08 / – 0,15 mm |
| Nenndurchmesser (D1) | 4.0 mm |
| Bohrer (Durchmesser–Vorbohren) | 4,8 – 4,9 mm |
| Länge (mm) | 13,0 |
| Länge (L) Toleranz | + 1,0 / – 0,2 mm |
| Länge Nietdorn (P) | ≥ 27,0 mm |
| Kopfhöhe (k) | 1,5 + / – 0,2 mm |
| F–Max | 17.0 mm |
| Scherbruchlast | 3000 N |
| Zugbruchlast | 1000 N |
| Klemmbereich min. | 5,0 mm |
| Klemmbereich max. | 8,0 mm |
| Geeignet für | Innen– und Außen |
| Passendes Werkzeug | GO–3, GO–55, EL–48–R, GO–40, EL–64–R, GO–25–SN, EL–64–N, GO–12–R, AIRPOWER 1, AIRPOWER 2, GO–BR1 |
| VPE | 500 |
