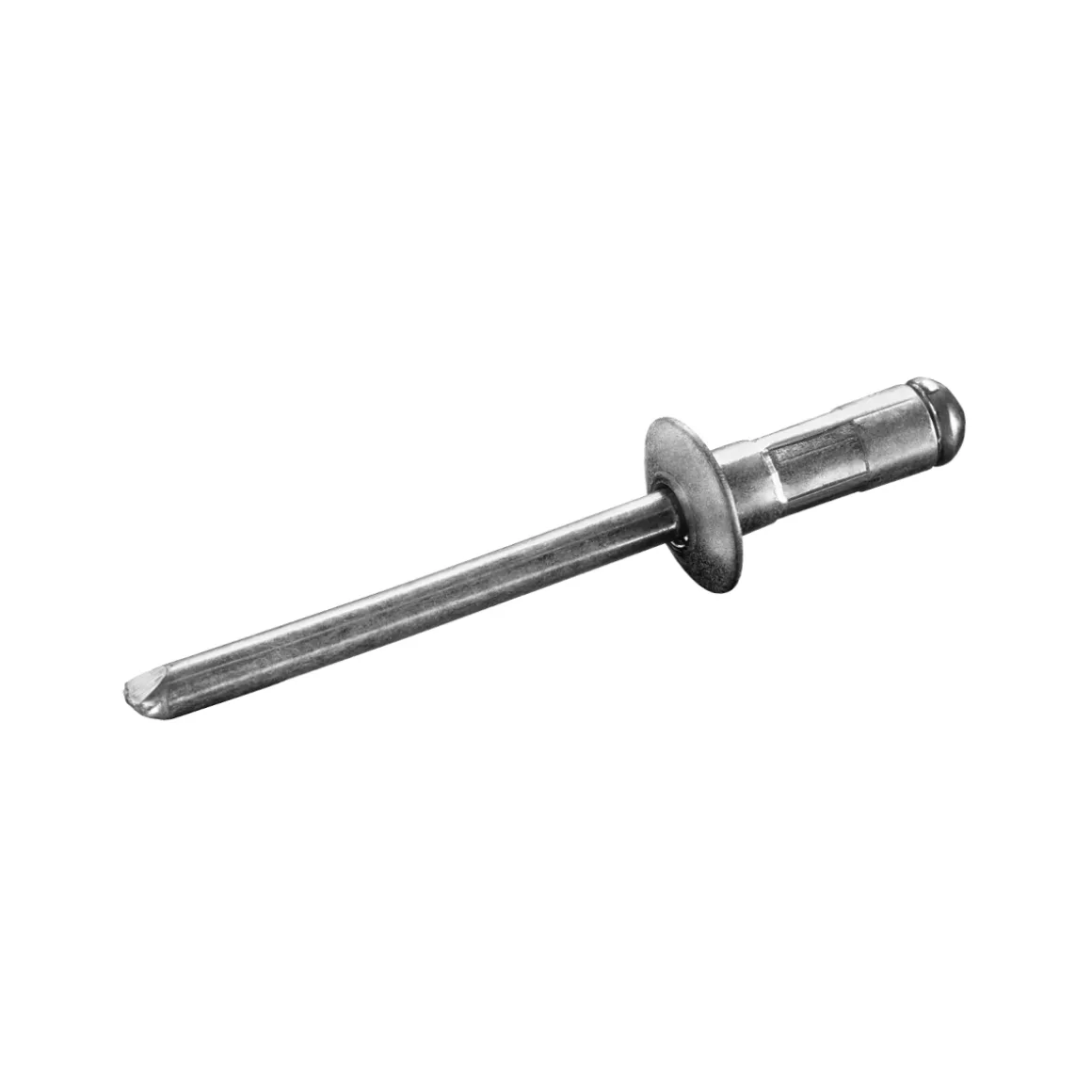

Mehrbereichsblindnieten Aluminium/Stahl (Ø x L) 4,0 x 17,0 mm Flachkopf Niete – Mehrbereichsnieten – MULTI
Original price was: €24.94.€18.05Current price is: €18.05.
| Artikel | Mehrbereichs–Blindniete Mehrbereichsblindniete MULTI AL/ST – Flachkopf – 4,0x17 mm |
| Artikelnummer | 7770140160 |
| Produkttyp | Mehrbereichs–Blindniete |
| Markenname | MULTI |
| Hersteller | Goebel GmbH |
| Werkstoff Dorn | Stahl |
| Oberfläche Dorn | Stahl verzinkt |
| Werkstoff Hülse | Aluminium AlMG 2,5 |
| µ–Wert | 3–5 |
| Kopfform | Flachkopf |

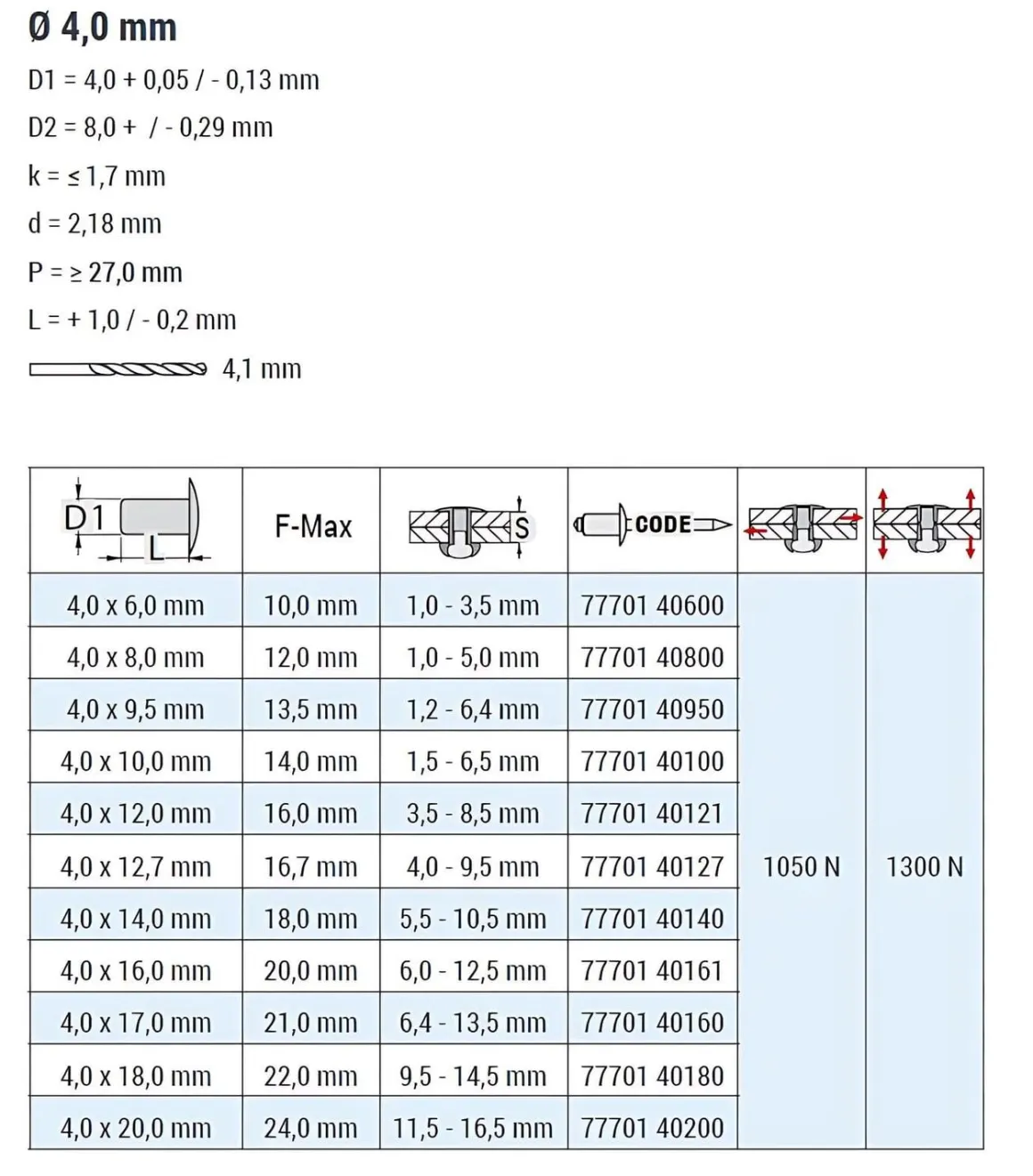

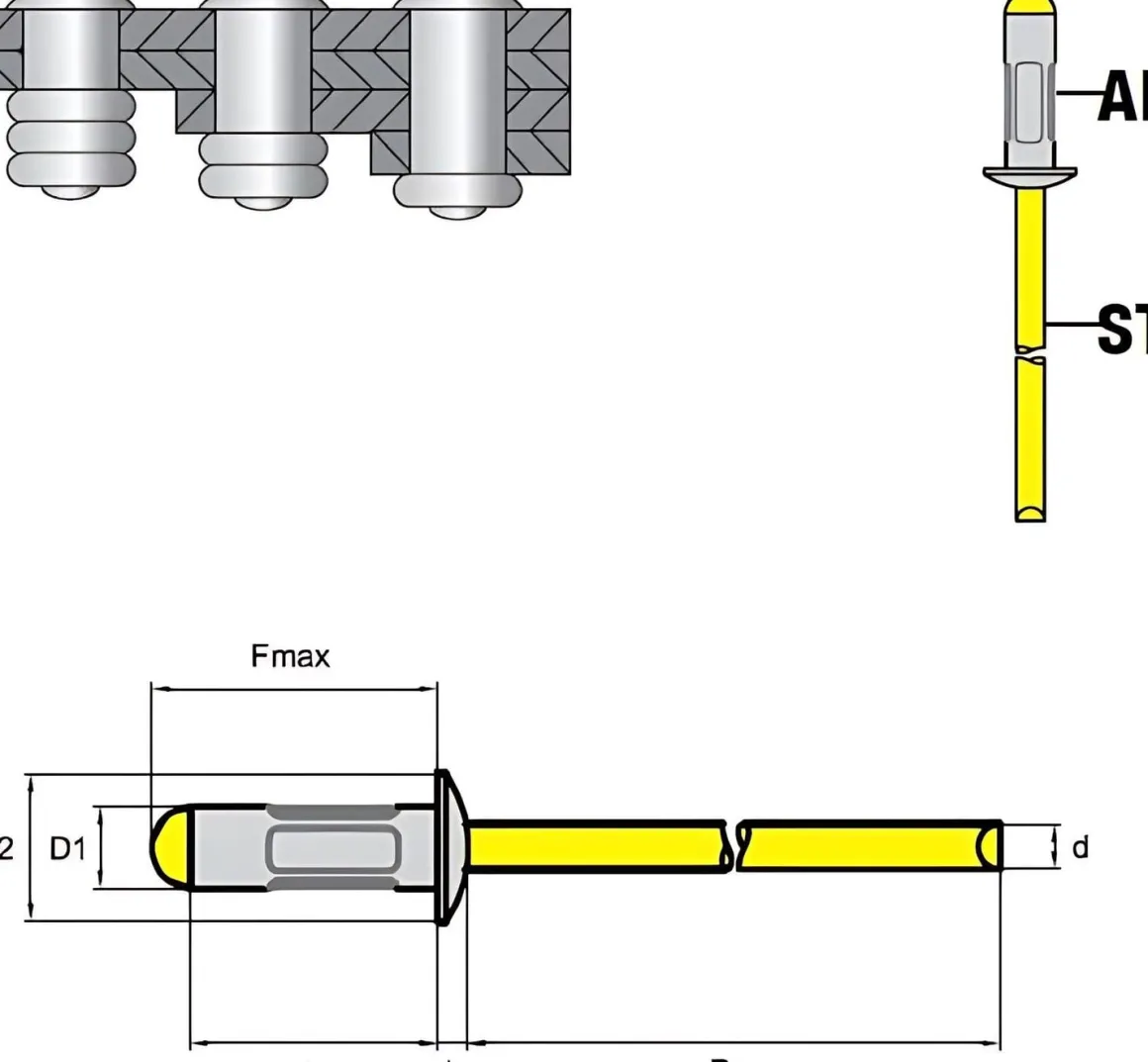

| Durchmesser (mm) | 4,0 |
| Durchmesser Kopf (D2) | 8,0 + / – 0,29 mm |
| Nietdorn Durchmesser (d) | 2.18 mm |
| D1 Toleranz | 4,0 + 0,05 / – 0,13 mm |
| Nenndurchmesser (D1) | 4.0 mm |
| Bohrer (Durchmesser–Vorbohren) | 4,1 mm |
| Länge (mm) | 17,0 |
| Länge (L) Toleranz | + 1,0 / – 0,2 mm |
| Länge Nietdorn (P) | ≥ 27,0 mm |
| Kopfhöhe (k) | ≤ 1,7 mm |
| F–Max | 21.0 mm |
| Scherbruchlast | 1050 N |
| Zugbruchlast | 1300 N |
| Klemmbereich min. | 6,4 mm |
| Klemmbereich max. | 13,5 mm |
| Geeignet für | Innen |
| Passendes Werkzeug | GO–3, GO–55, GO–360, EL–48–R, GO–40, EL–64–R, GO–25–SN, EL–64–N, GO–12–R, AIRPOWER 1, AIRPOWER 2, GO–BR1 |
| VPE | 500 |
