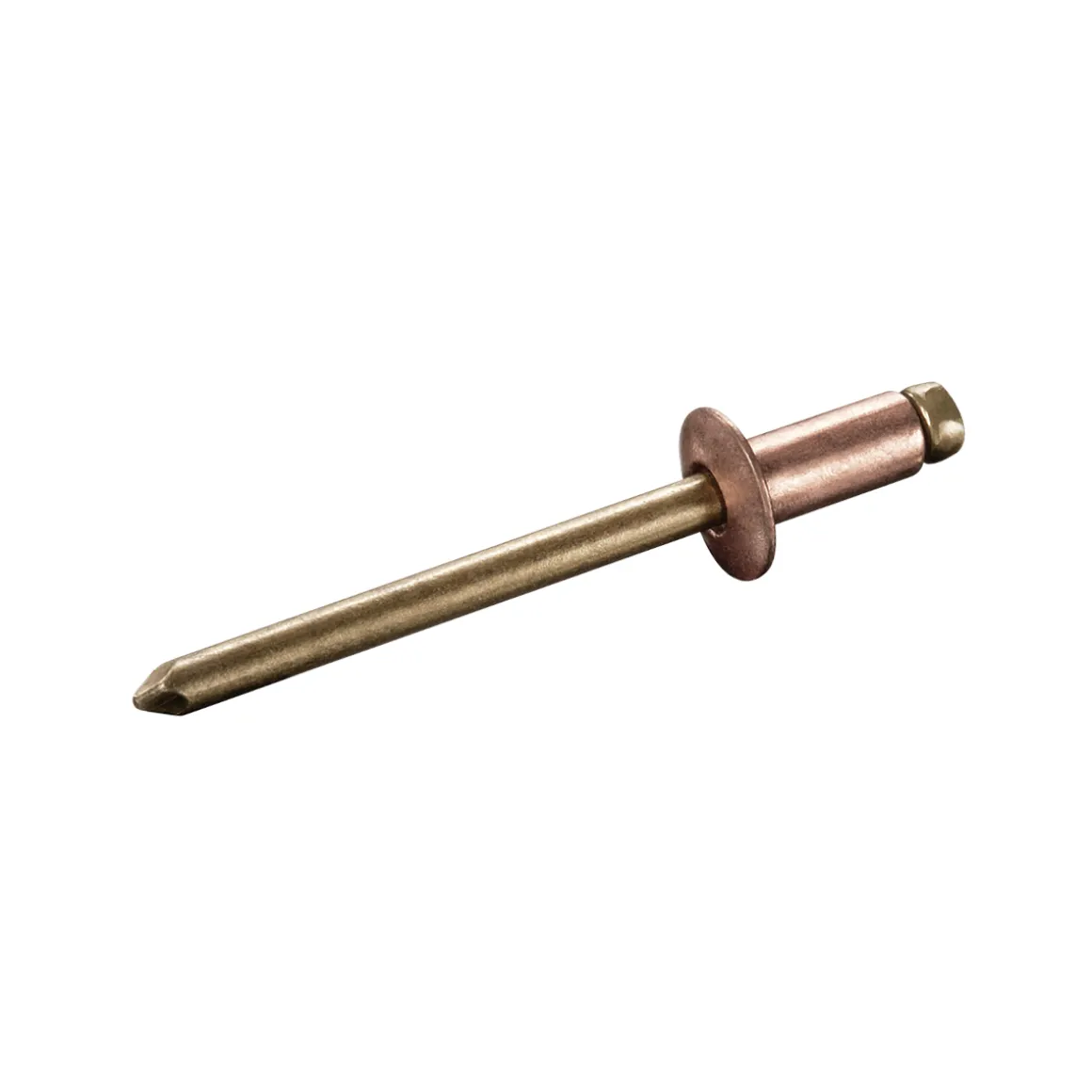

Blindnieten Kupfer Legierung/Bronze (Ø x L) 3,0 x 6,0 mm mit Flachkopf ISO16582 – Flachkopf Niete – Popniete – STANDARD
Original price was: €190.92.€121.25Current price is: €121.25.
| Artikel | Blindniete STANDARD CU/BR – Flachkopf – 3,0x6 mm |
| Artikelnummer | 7090130602 |
| Produkttyp | Blindniete |
| Markenname | STANDARD |
| Hersteller | Goebel GmbH |
| Werkstoff Dorn | Bronze |
| Werkstoff Hülse | Kupfer |
| Oberfläche Hülse | Kupfer Legierung |
| Kopfform | Flachkopf |

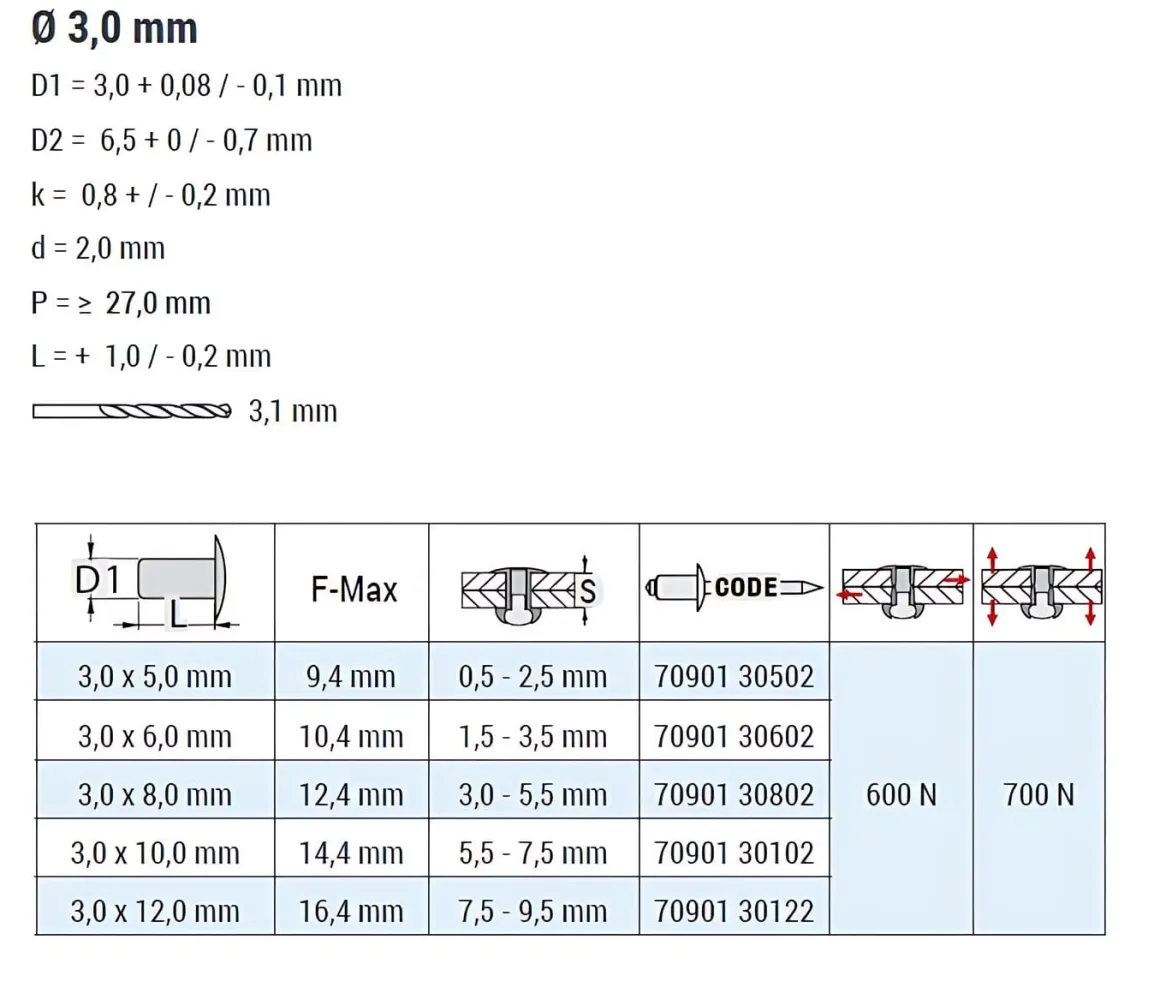

| Durchmesser (mm) | 3,0 |

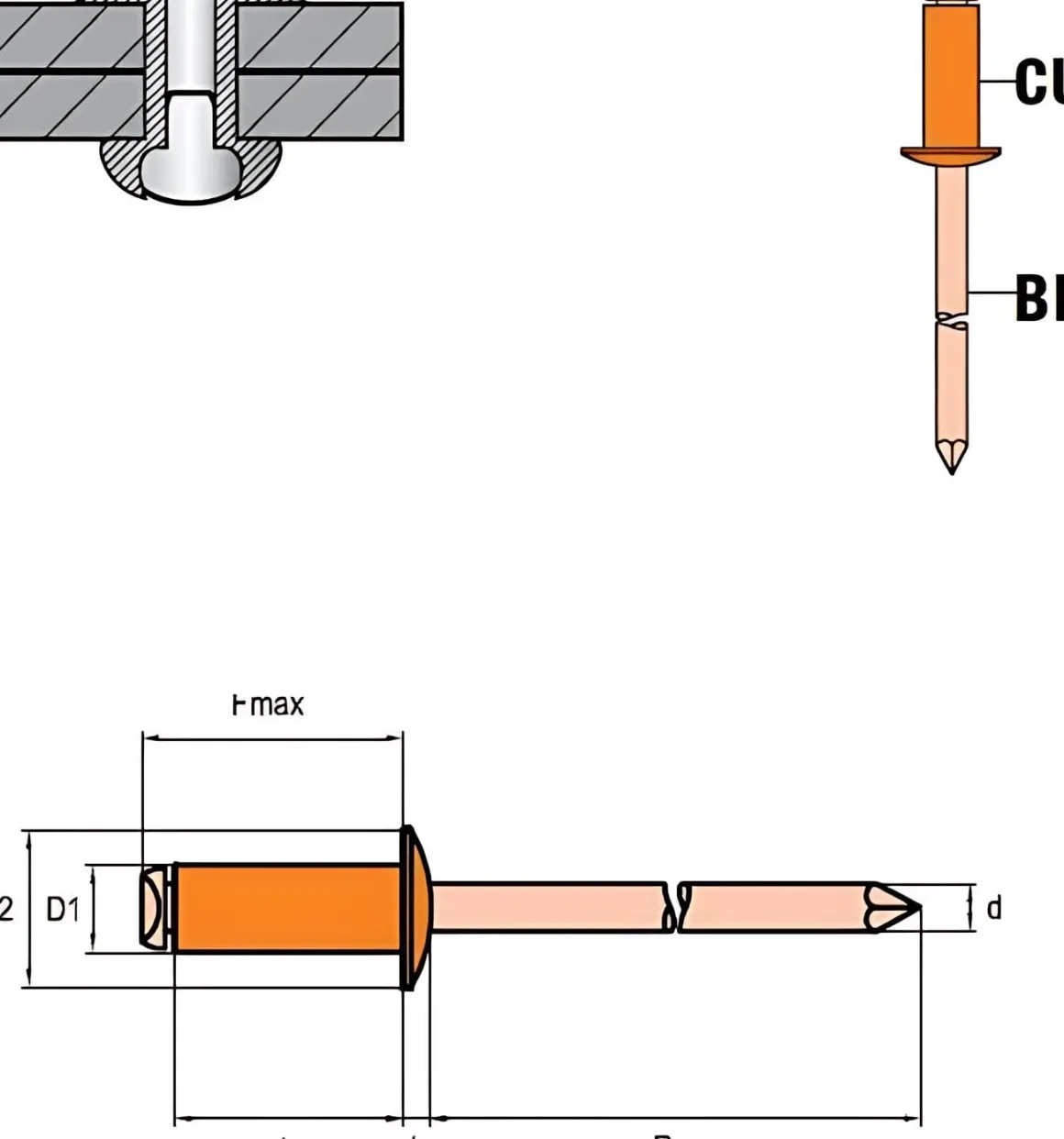

| Durchmesser Kopf (D2) | 6,5 + 0 / – 0,7 mm |
| Nietdorn Durchmesser (d) | 2.00 mm |
| D1 Toleranz | 3,0 + 0,08 / – 0,1 mm |
| Nenndurchmesser (D1) | 3.0 mm |
| Bohrer (Durchmesser–Vorbohren) | 3,1 mm |
| Länge (mm) | 6,0 |
| Länge (L) Toleranz | + 1,0 / – 0,2 mm |
| Länge Nietdorn (P) | ≥ 27,0 mm |
| Kopfhöhe (k) | 0,8 + / – 0,2 mm |
| F–Max | 10.4 mm |
| Scherbruchlast | 600 N |
| Zugbruchlast | 700 N |
| ISO–Norm | ISO16582 |
| Klemmbereich min. | 1,5 mm |
| Klemmbereich max. | 3,5 mm |
| Geeignet für | Innen |
| Passendes Werkzeug | GO–3, GO–55, GO–360, EL–48–R, GO–40, GO–25–SN, GO–12–R, AIRPOWER 1, GO–BR1 |
| VPE | 1000 |
