Sale!
Blindnieten Aluminium/Aluminium (Ø x L) 4,0 x 6,0 mm mit Senkkopf ISO15982 – Senkkopf Niete – Popniete – STANDARD
Original price was: €39.56.€27.43Current price is: €27.43.
| Artikel | Blindniete STANDARD AL/AL – Senkkopf – 4,0x6 mm |
| Artikelnummer | 7070540601 |
| Produkttyp | Blindniete |
| Markenname | STANDARD |
| Hersteller | Goebel GmbH |
| Werkstoff Dorn | Aluminium |
| Oberfläche Dorn | Aluminium Legierung |
| Werkstoff Hülse | Aluminium AlMG 2,5 |
| Kopfform | Senkkopf |

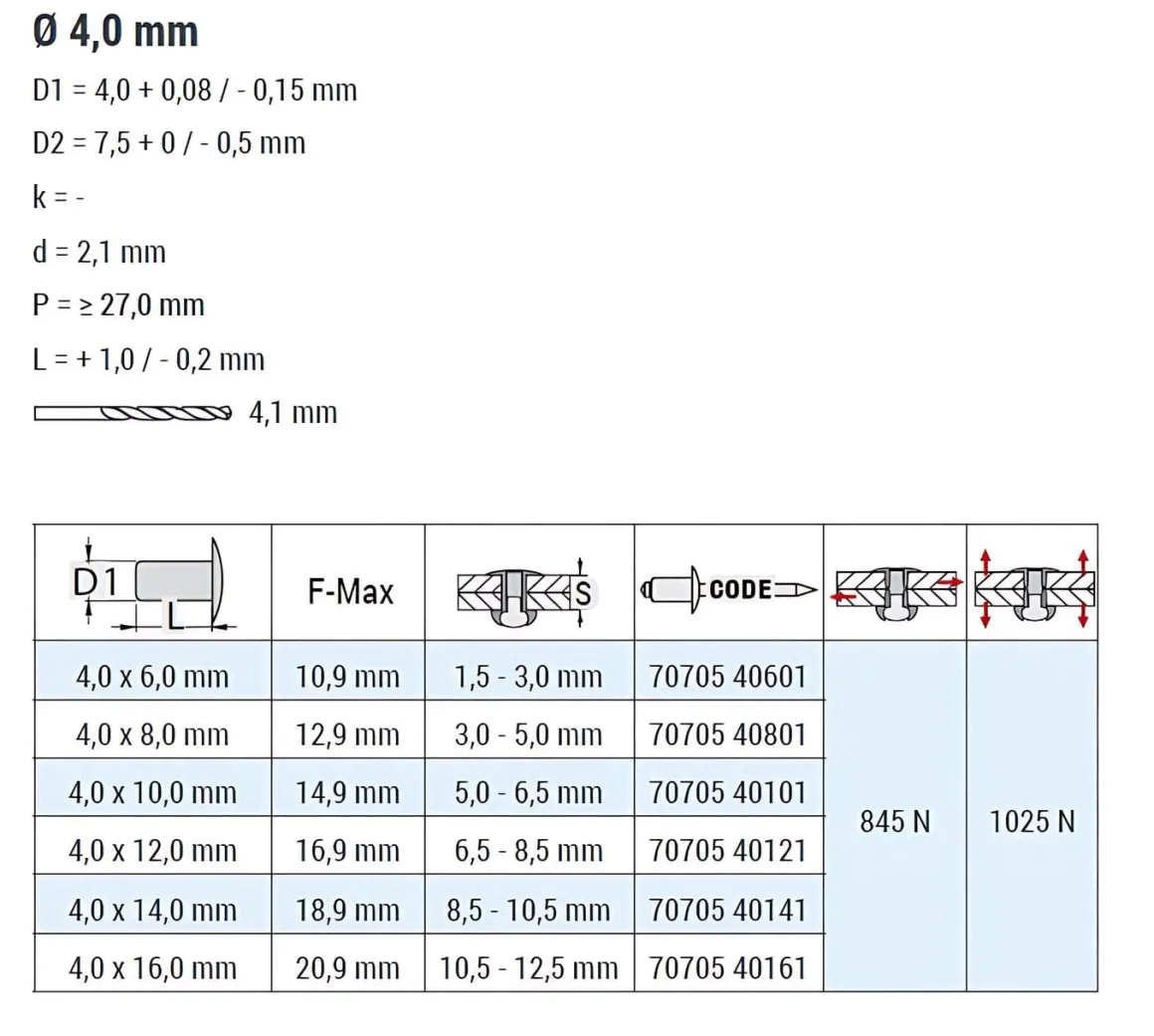

| Durchmesser (mm) | 4,0 |

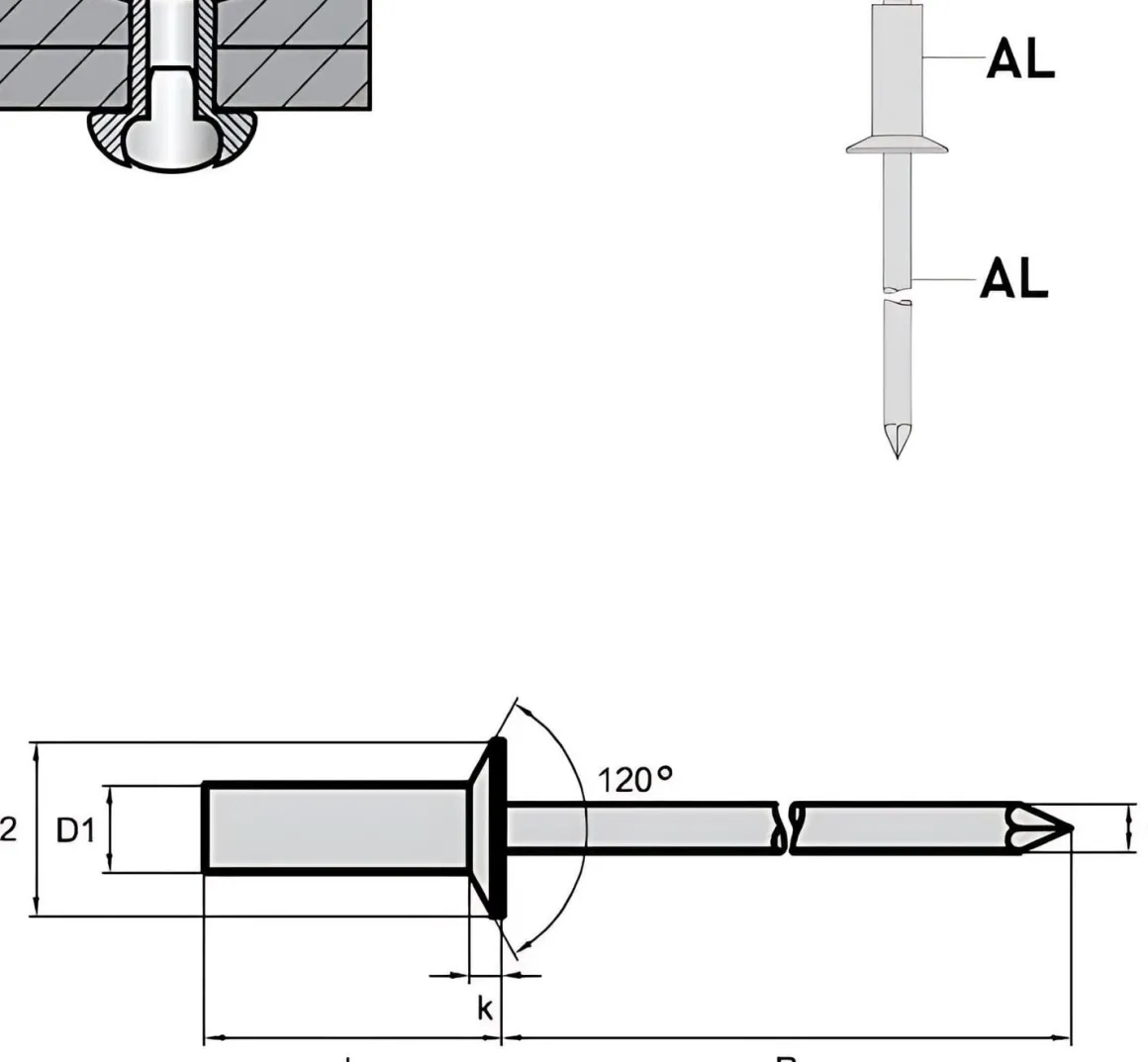

| Durchmesser Kopf (D2) | 7,5 + 0 / – 0,5 mm |
| Nietdorn Durchmesser (d) | 2.10 mm |
| D1 Toleranz | 4,0 + 0,08 / – 0,15 mm |
| Nenndurchmesser (D1) | 4.0 mm |
| Bohrer (Durchmesser–Vorbohren) | 4,1 mm |
| Länge (mm) | 6,0 |
| Länge (L) Toleranz | + 1,0 / – 0,2 mm |
| Länge Nietdorn (P) | ≥ 27,0 mm |
| Senkkopf Grad | 120° |
| F–Max | 10.9 mm |
| Scherbruchlast | 845 N |
| Zugbruchlast | 1025 N |
| ISO–Norm | ISO15982 |
| Klemmbereich min. | 1,5 mm |
| Klemmbereich max. | 3,0 mm |
| Geeignet für | Innen |
| Passendes Werkzeug | GO–3, GO–55, GO–360, EL–48–R, GO–40, EL–64–R, GO–25–SN, EL–64–N, GO–12–R, AIRPOWER 1, AIRPOWER 2, GO–BR1 |
| VPE | 500 |
