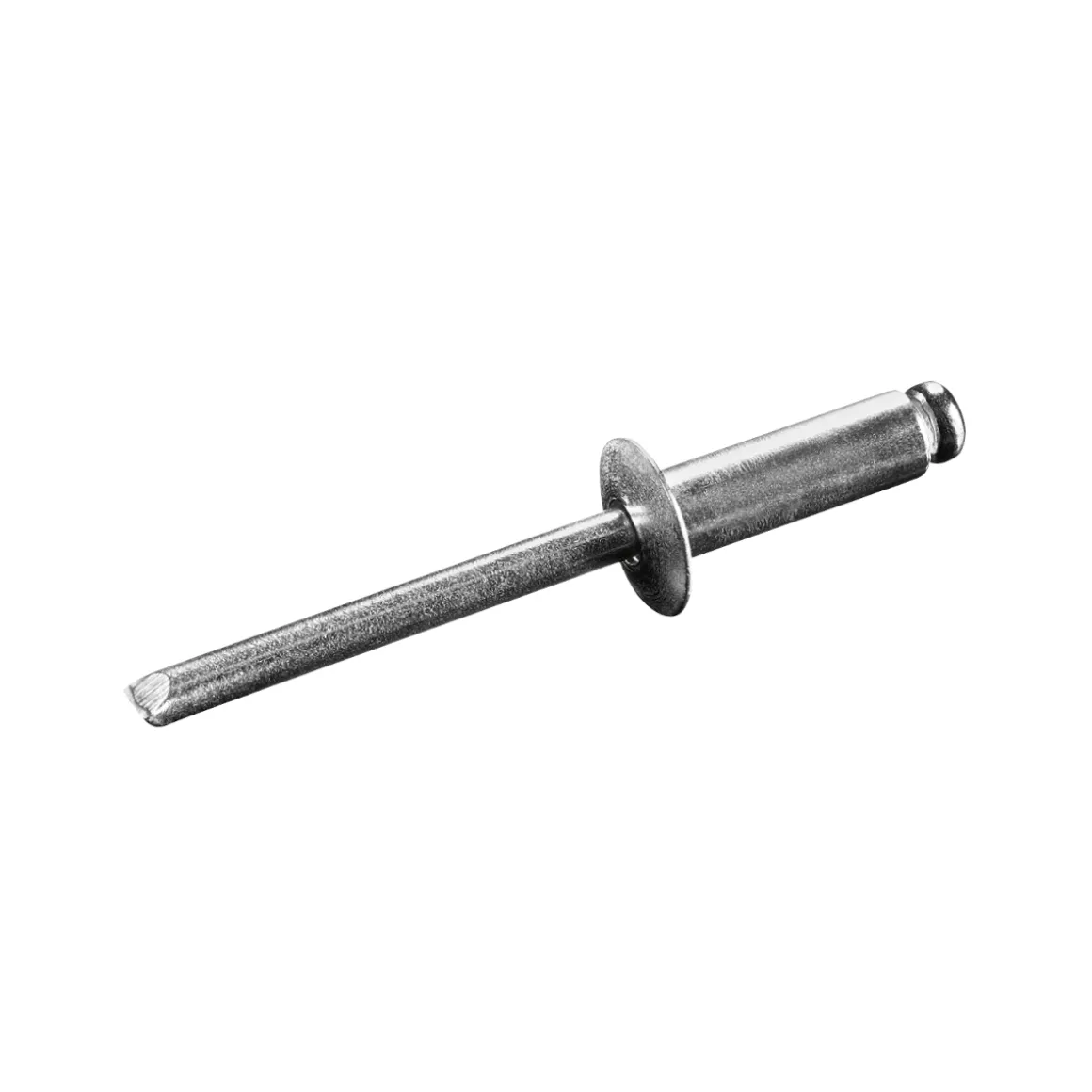

Flachkopf Nieten Aluminium/Edelstahl A2 (Ø x L) 3,0 x 16,0 mm mit Flachkopf – Flachkopf Niete – Popniete – STANDARD
Original price was: €64.50.€48.15Current price is: €48.15.
| Artikel | Blindniete STANDARD AL/A2 – Flachkopf – 3,0x16 mm |
| Artikelnummer | 7020130160 |
| Produkttyp | Blindniete |
| Markenname | STANDARD |
| Hersteller | Goebel GmbH |
| Werkstoff Dorn | Edelstahl A2 [ 1.4301 ] |
| Werkstoff Hülse | Aluminium AlMG 5,0 |
| Kopfform | Flachkopf |

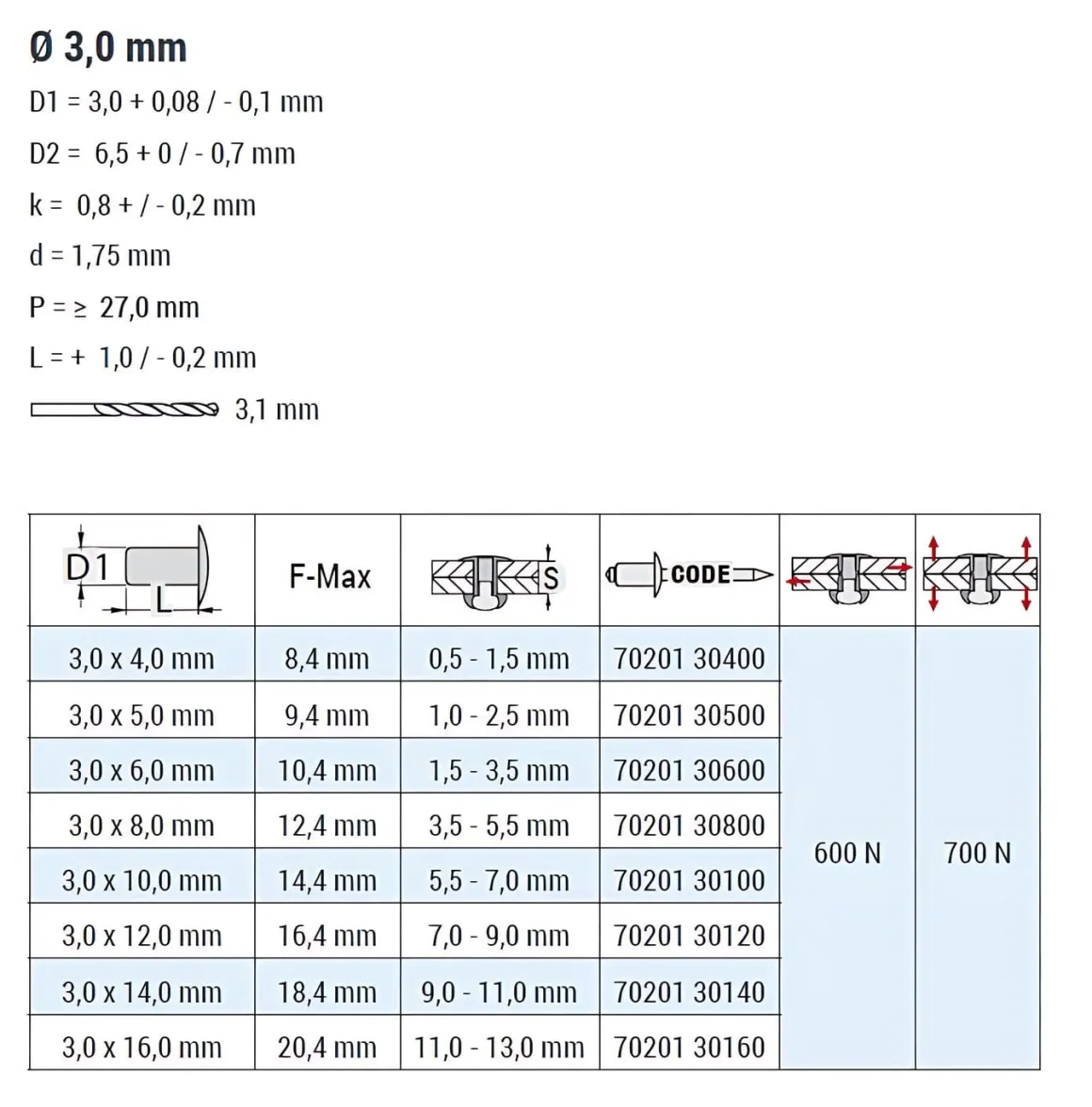

| Durchmesser (mm) | 3,0 |
| Durchmesser Kopf (D2) | 6,5 + 0 / – 0,7 mm |
| Nietdorn Durchmesser (d) | 1.75 mm |
| D1 Toleranz | 3,0 + 0,08 / – 0,1 mm |
| Nenndurchmesser (D1) | 3.0 mm |
| Bohrer (Durchmesser–Vorbohren) | 3,1 mm |
| Länge (mm) | 16,0 |
| Länge (L) Toleranz | + 1,0 / – 0,2 mm |
| Länge Nietdorn (P) | ≥ 27,0 mm |
| Kopfhöhe (k) | 0,8 + / – 0,2 mm |
| F–Max | 20.4 mm |
| Scherbruchlast | 600 N |
| Zugbruchlast | 700 N |
| Klemmbereich min. | 11,0 mm |
| Klemmbereich max. | 13,0 mm |
| Geeignet für | Innen |
| Passendes Werkzeug | GO–3, GO–55, GO–360, EL–48–R, GO–40, GO–25–SN, GO–12–R, AIRPOWER 1, GO–BR1 |
| VPE | 1000 |
